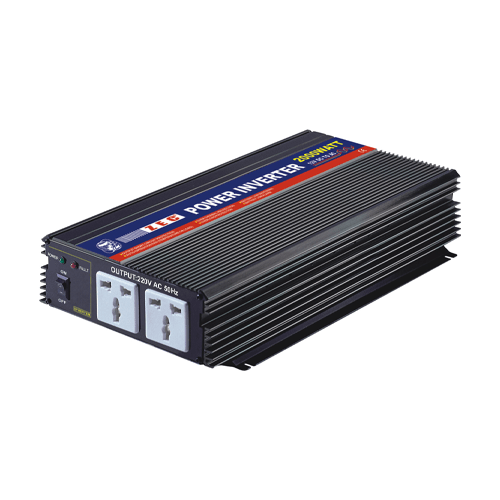

ZEC POWER INVERTER Model: ZPI-2000

Output power (Countinuous Watts) = 2000
Output power (Peak Watts) = 4000
Nominal Input Voltage (DC) = 12V (10~15V)/24V (20~30V)
Nominal Output Voltage (AC) = 115V AC or 230V AC
Frequency = 50Hz or 60Hz +/- 5%, Crystal controlled
Output Regulation = Intelligent Pwm +/- 0.5%
Output Waveform = Modified Sine wave
Low Battery-voltage Alarm (Volts) =10.5 +/- 0.5V / 21+/-1V
Low Battery-Voltage Shutdown (Volts) = 10+/- 0.5V / 20+/-1V
Thermal Protection = 65˚C +/-5˚C
Overload = Shut down & Alarm
Battery Polarity Reverse = By Fuse
Output Short = Output short Cicuit Protection
With Cooling Fan = Yes Auto-operation fan (temperature or load)
AC Outlet = “USA Type: 4AC Output / European Type: 2AC Outlets”
Replaceable Fuse (12V DC) = 12 x 25A
Replaceable Fuse (24V DC) = 12 x 10A
